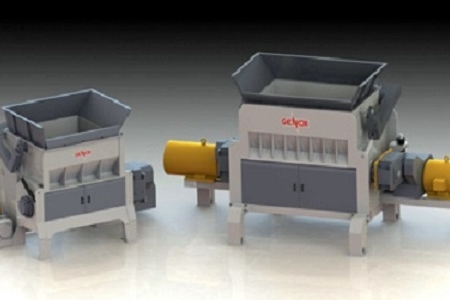

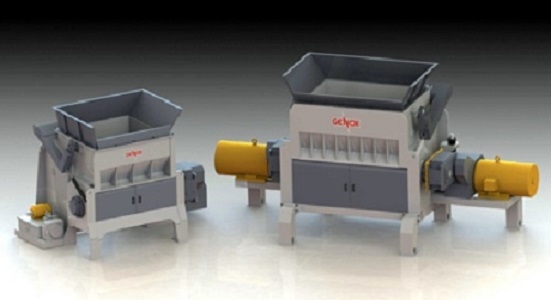

K Series Single Shaft Shredders

K Series Single Shaft Shredders are heavy duty size reduction machines suitable for processing a wide range of materials. These shredders are ideal for the size reduction of flexible and/or medium hardness hollow products in bales. The fast acting, PLC controlled swing pusher automatically forces material to the rotor according to motor loading. This maximizes material throughput. Machine capacities typically range between 1,500kg/hr. –9,000kg/hr. depending on the model, material type and application.

The applications are as listed here:

  • Plastics –Moldings, Purgings/Lump, Profiles, Films etc.
  • Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials, etc.
  • Copper Cable – Household, Telecoms and Industrial Cables including S.W.A
  • Aluminum – Used Beverage Cans (UBC’s), Swarf, Cables, etc.
  • Textiles – Carpet (Rolls & Tiles), Garments, etc.
  • Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock, etc.
  • Foam – Production Waste, etc.
  • Mixed Household & Commercial Waste – RDF/SRF Production

Standard Features

  • Energy Efficient + Maximum Cutting Force & Productivity
  • Shock Absorbing Gearbox reduces Stress on Drive Components
  • Rotor Knives can be rotated and used on several edges before replacement.
  • Long Life Counter Knives can be used on two edges and adjusted to maintain cutter clearance
  • Quick Change Screens for accurate particle size control
  • Swing Ram Pusher with exchangeable PU Slides
  • Rotor Quick Access Door on the back side
  • Twin Speed Hydraulics with integrated air cooler
  • Stand Alone Electrical Control Panel with Siemens PLC Control System
  • Tested, Approved and Certified to the applicable CE safety standards

Technical Data

ModelK1500K2000K1700K2200
Dimensions L / W / H (mm)3,660 x 2,210 x 2,9504,590 x 2,210 x 2,9705,500 x 2,400 x 3,1006,200 x 2,400 x 3,100
Hopper Inlet (mm)1,900 x 1,4402,400 x 1,4402,100 x 1,4502,650 x 1,450
Discharge Height (mm)440440550600
Ram Travel (mm)1,0001,0001,0001,000
Rotor Diameter (mm)Ø 480Ø 480Ø 650Ø 650
Rotor Operation Length (mm)1,5002,0001,6502,200
Rotor Speed (rpm)80808080
Screen (mm)Ø 40Ø 40Ø 40Ø 40
Rotor Knives (pcs)849578105
Counter Knives (pcs)3 + 34 + 43 + 34 + 4
Drive Power (kW)11075 + 7513290 + 90
Hydraulic Power (kW)5.55.57.511
Hopper Volume (litres)2,6503,5003,0004,000
Approximate Weight (kg)11,00016,72014,00018,000
ModelK2800K1800K2400K3000
Dimensions L / W / H (mm)7,000 x 2,400 x 3,1005,800 x 2,450 x 3,2806,500 x 2,450 x 3,2807,400 x 2,450 x 3,280
Hopper Inlet (mm)3,200 x 1,4502,300 x 1,4502,900 x 1,4503,500 x 1,450
Discharge Height (mm)600600600600
Ram Travel (mm)1,0001,0001,0001,000
Rotor Diameter (mm)Ø 650Ø 800Ø 800Ø 800
Rotor Operation Length (mm)2,7501,8002,4003,000
Rotor Speed (rpm)80808080
Screen (mm)Ø 40Ø 40Ø 40Ø 40
Rotor Knives (pcs)118105124156
Counter Knives (pcs)5 + 53 + 34 + 45 + 5
Drive Power (kW)110 + 110110 + 110132 + 132160 + 160
Hydraulic Power (kW)115.57.511
Hopper Volume (litres)5,0003,3004,5005,500
Approximate Weight (kg)22,00015,00021,00026,000

Technical data provided is indicative only and may be subject to change without notice.
